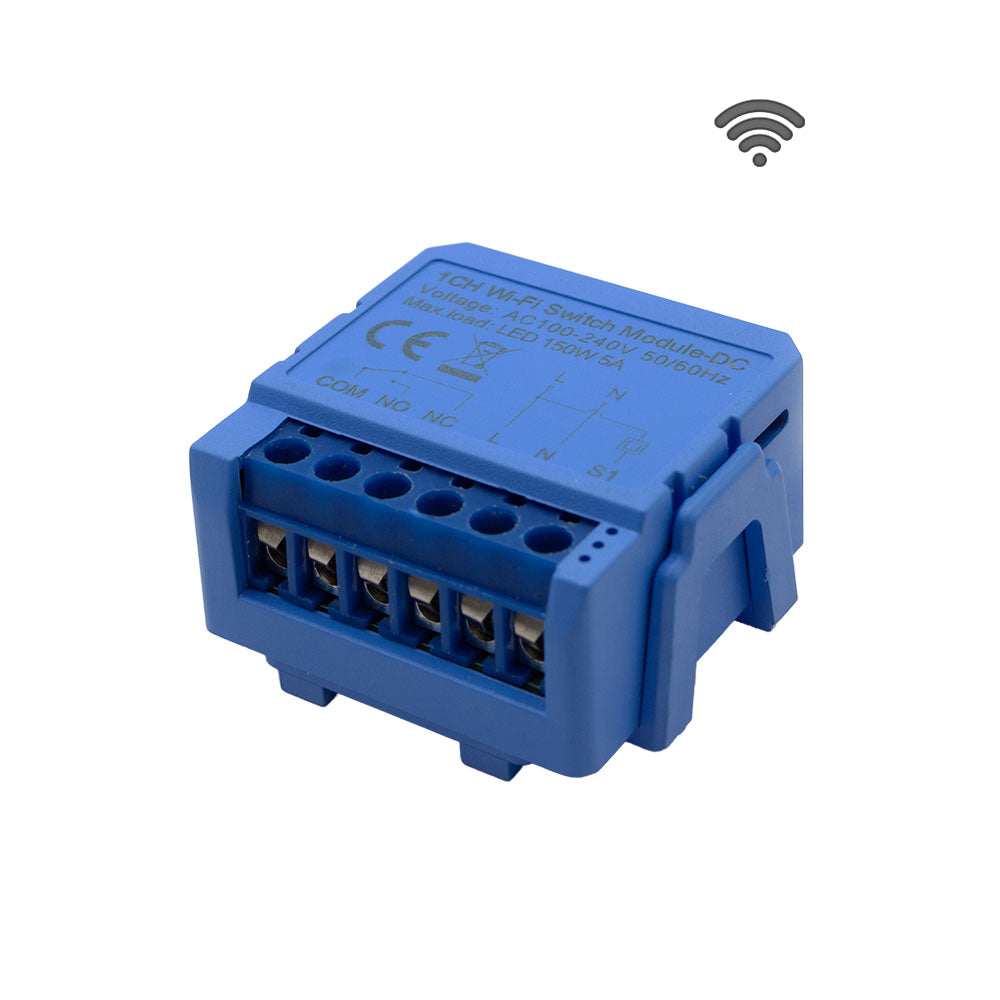

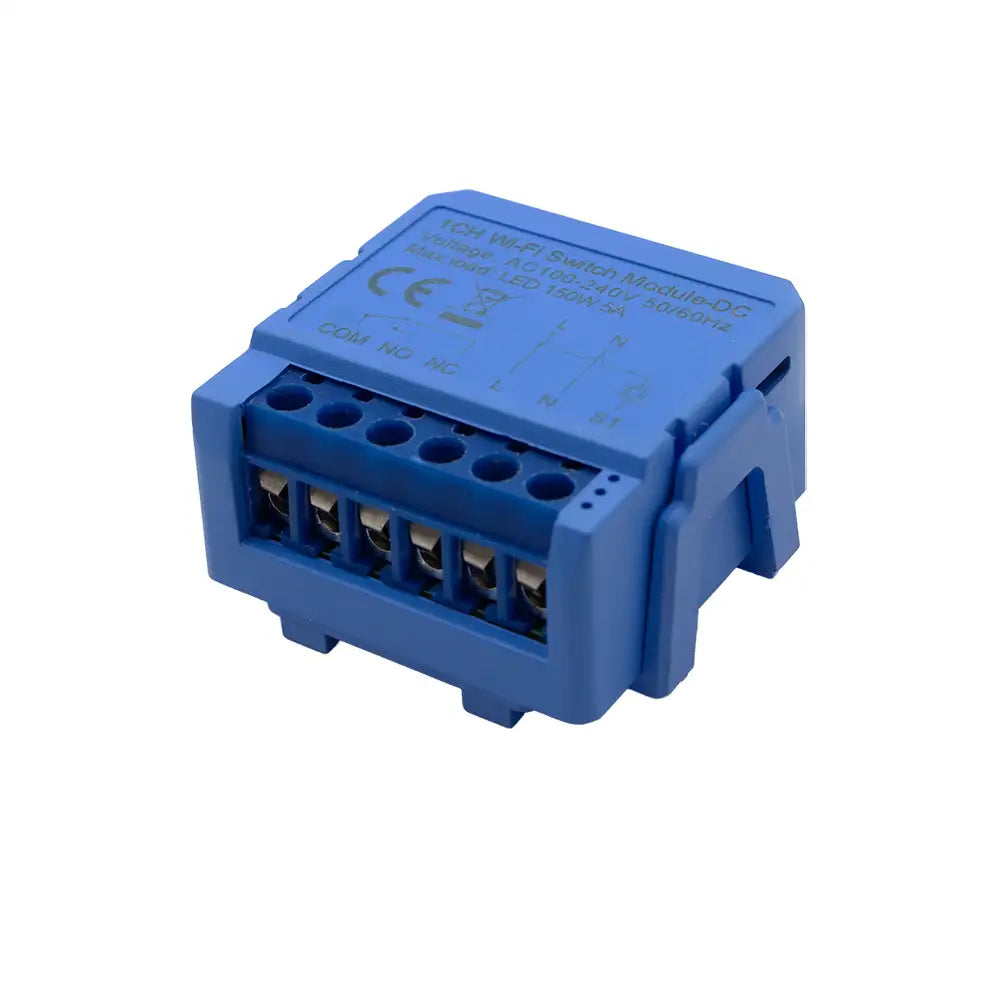

SIRO Smart Relay Switch DC Module

Smart Relay

The SIRO Smart Switch Relay SL09726W makes it easy to transform your conventional switches and switching systems into smart control units. The module is installed behind the existing switches and connected to your home network via Wi-Fi. Using the Smart Life app, you can conveniently control your lighting or connected devices from anywhere – no matter where you are.

Voice control

Voice control via Amazon Alexa and Google Assistant allows you to easily trigger switching systems with voice commands. Additionally, you can create automated schedules to control lighting or devices at specific times, providing extra convenience.

Relay - in a recessed box

The SIRO Smart Relay Switch Dry Module SL09726W can be installed invisibly behind existing switches without changing the external appearance. This allows you to modernize your rooms without having to make any visual adjustments.

Potential-free contact

The Siro Smart Relay allows flexible control of devices via Wi-Fi and offers a potential-free dry contact. This allows different circuits to be switched independently of each other – ideal for smart home and automation applications. Control lighting, gates, heating systems or alarm systems directly via the Smart Life app or by voice command with Alexa & Google Assistant. Thanks to its compact design, the relay is versatile and can be used in switch cabinets, home automation or industrial controls.

Easily set up the push-button function.

The desired push-button function can be easily implemented in the Smart Life app: In the "Switch Type Settings", select the option "Rocker Switch - State Synchronous". For the module to recognize the actual switching state, the installed wall switch must be a spring-return push button – not a latching rocker switch. Using the integrated timer function in the device menu, you can also set a fixed operating time after which the relay automatically switches off. Please note that the Smart Life app always displays the relay as a switch in remote access; a native push-button view is not possible.

Our WEEE registration number is: WEEE-Reg.-Nr. DE59943004

* No guarantee given

Scope of delivery

• 1x Relay

Technical Details

• Communication:WLAN 2.4 GHz
• Operating Temp:-10 ℃ + 40 ℃
• Voltage:AC 100-240V 50/60Hz
• Max. Last:150W 5A
• Operating range:<100m
• Size:39mm x 39mm x 19.4mm

Operating instructions
